WBR-6002 Configuration Guide for Streamyx ISP

*Note:You have to connect your PC to the router and make sure the cable is plug in LAN port and the router is power on.

1. Open your Internet browser, example: Internet Explorer, and key in 192.168.0.1 at address bar.



2. Key in user name and password. *(the default user name is admin; password is password).


3. Select "Setup Wizard"


4. Select "Ethernet" and click "Next".


5. Select "Login" and "PPPoE", then click "Next".


6. Key in username and password for your Streamyx then click "Finish".
*Note: Make sure the user name and password is correct.

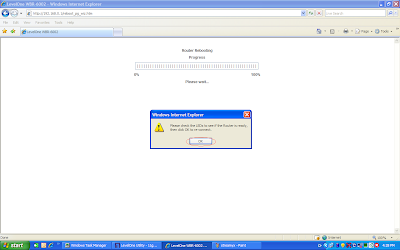

7. Click "OK" to save and reboot the router.


*Note: You should be able to enjoy your Internet connection now. If not, kindly make sure your Streamyx username & password are correct, phone cable already plug in to your router and your LAN cable is plug in to your PC horoscope

*For make sure your connection is up, you can go to "Status" and check the Internet status.


* If you need any further assistance on the above kindly call your dealer or email your enquiry to support@ivenue.com.my
